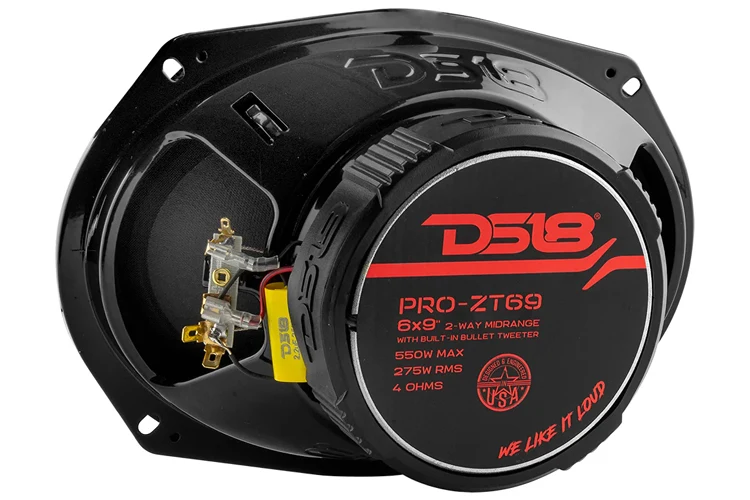

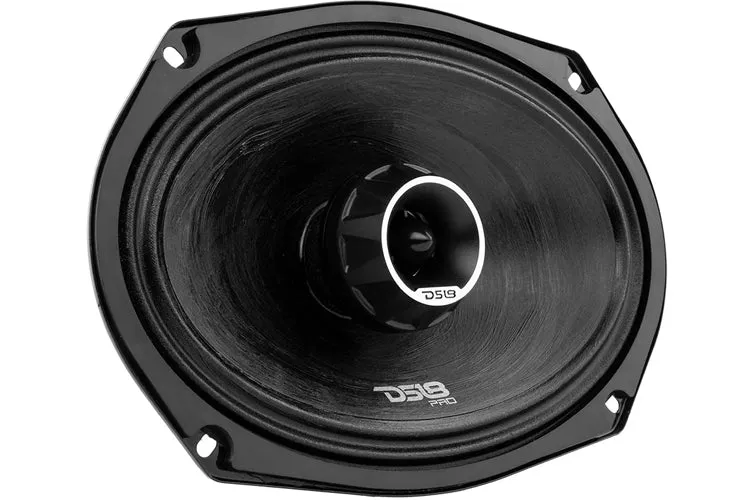

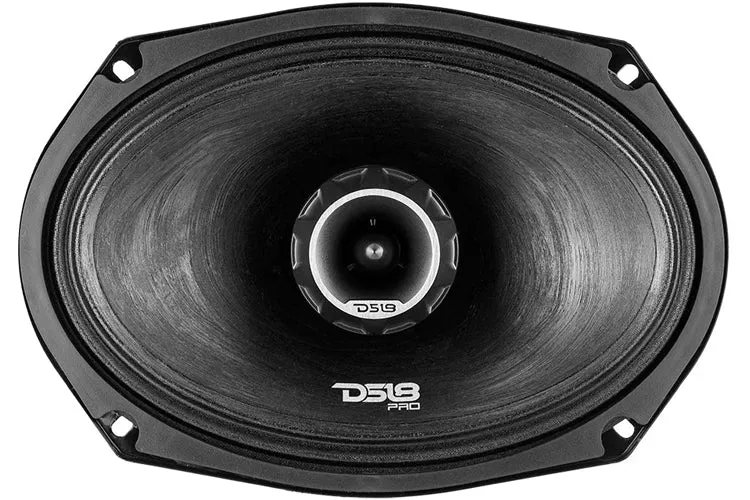

DS18 PRO-ZT69 6x9" Coaxial Mid-Range Loudspeaker (Each)

6x9" Water-Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter & Grill €“ 550W, 4 Ohm
Feel the power of immersive sound with the PRO-ZT69 €” a rugged, water-resistant 2-way coaxial speaker designed for bold performance. Engineered for precision and clarity, it delivers powerful, full-range audio with exceptional accuracy and durability.

Key Features:

• 6X9" Coaxial Water Resistant Mid-Range
• RMS Power: 275 Watts(550W Peak)
• Impedance: 4 Ohm
• Ferrite & Neodymium Magnets
• Built in Tweeter with Grill
• 98dB

Specifications:

• Nominal Diameter: 6x9"
• Nominal Impedance: 4 ohms
• RMS Power Handling: 275 WATTS
• Maximum Power Handling: 550 WATTS
• Sensitivity (1w/1m): 98dB
• Frequency Response: 60Hz €“22KHz
• Recommended Hi Pass Crossover: 80 Hz

• MIDRANGE
• Voice Coil Diameter: 1.5" (38.1 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Basket Material: Steel
• Magnet Weight: 27 oz
• Magnet Material: Ferrite

• TWEETER
• Voice Coil Diameter: 1"
• Voice Coil Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Aluminum Alloy
• Magnet Weight: 0.44 oz
• Magnet Material: Neodymium (N38H)

• THIELE & SMALL PARAMETERS
• Vas: 14.6927 LTR
• Xmax: 16 mm
• Fs: 85 Hz
• Qms: 3.906
• Qes: 0.639
• Qts: 0.549
• Re: 3.2 ohms
• MEASUREMENTS
• Overall Diameter: 260 x 180 mm (10.24 x 7.09")
• Front Mount Baffle Cutout: 219 x 150 mm (8.62 x 5.91")
• Mounting Depth: 85 mm (3.35")
• Overall Depth: 97 mm (3.81")
